Railway Building

Product advantages ：

1. High strength and weight bearing

2. Good insulation

3. Good flame resistant

4. Good aging resistance, no rust

SMC materials for railway building

Recommended application：

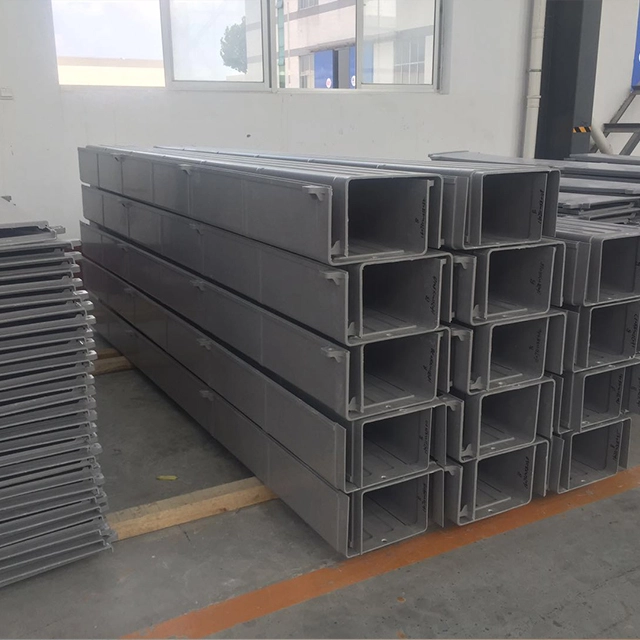

Railway Cable tray,Subway rail cable support, etc.

Typical data ：

Attention：

1. We can design the color as customers request.

2. We suggest the store environment below 25℃，shade place ,60days .

Property	Fiberglass content	Stretch strength	Bend strength	Impact strength	Shrink rate	Oxygen index	Flame resistant grade	Dielectric strength	Arc resistance
Test standard	GB/T 15568-2008	GB/T 1447-2005	GB/T 1449-2005	GB/T 1451-2005	GB/T 15568-2008	GB/T 8924-2005	UL-94	GB/T 1408-2006	GB/T 1411-2002
Unit	%	Map	Map	KJ/㎡	%	%	Grade	KV/mm	GB/T 1411-2002
B-01	20%±2	≥45	≥135	≥40	≤0.15	≥28	V1	≥12	≥180
B-02	25%±2	≥55	≥155	≥50	≤0.15	≥28	V1	≥12	≥180
D-01	20%±2	≥45	≥135	≥40	≤0.15	≥32	V0	≥12	≥180
D-02	24%±2	≥50	≥155	≥50	≤0.15	≥32	V0	≥12	≥180
D-03	26%±2	≥60	≥160	≥55	≤0.15	≥32	V0	≥12	≥180
Thermal deformation temperature	GB/T 1634.1-2004	℃	≥200	≥200	≥200	≥200
