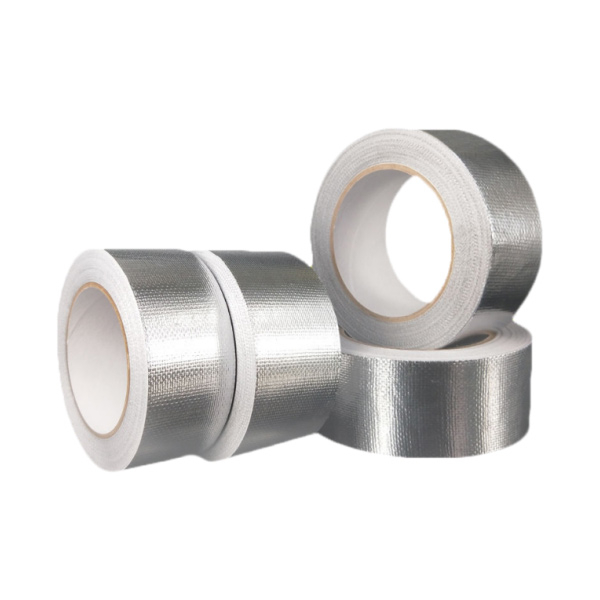

Aluminum Foil Fiberglass Cloth Tape

The glass fiber aluminum foil tape is made of high-quality silicate fiber as the substrate. It is made of Germany with unique, fine and high-precision technology, advanced composite technology and aluminum foil as the base of the tape. After special surface treatment, it is coated on one side. Layer adhesive (common temperature resistance/high temperature resistance) to produce roll-shaped self-adhesive tape, the surface of the aluminum foil is smooth and flat, high light reflectivity, large tensile strength in the longitudinal and transverse directions, airtight, impervious to water, good sealing performance. It has high shielding rate and strong material toughness. It can effectively shield the electronic interference generated by any electronic equipment.
Availability:

Aluminum foil fiberglass cloth tape

Our company is one of the earliest companies do research, exploitation and production of “Aluminum foil fiberglass cloth tape”.

In recent years, we have fetched in advanced machines, by which to finish al the production process, from high performance silicate fiber, fabric production, functional development and processing, to deep processing, etc. This helps to ensure “product quality, various production and double-quick delivery”.

Our company is dominant on high and middle quality product, taking “export to overseas market” as main channel. The brand of “FSD” of our company has become very famous within China and abroad.


● Introduction:

The glass fiber aluminum foil tape is made of high-quality silicate fiber as the substrate. It is made of Germany with unique, fine and high-precision technology, advanced composite technology and aluminum foil as the base of the tape. After special surface treatment, it is coated on one side. Layer adhesive (common temperature resistance/high temperature resistance) to produce roll-shaped self-adhesive tape, the surface of the aluminum foil is smooth and flat, high light reflectivity, large tensile strength in the longitudinal and transverse directions, airtight, impervious to water, good sealing performance. It has high shielding rate and strong material toughness. It can effectively shield the electronic interference generated by any electronic equipment.


● Main application:

1. Insulation material for pipes of heating and cooling equipment;

2. Building acoustic noise insulation material rock wool, outer layer of ultra-fine glass wool;

3. Waterproof, anti-fog, fireproof and anti-corrosion packaging materials used as export equipment;

4. Adhesive tape for electronic and household appliances (air conditioner, refrigerator, washing machine, etc.);

5. Automotive interior wire winding, pipe jacket insulation, etc.


● Notes:

1. The following is the normal specification standard, for the detailed information, please see FSD detailed specification standard.

2. The following are some types, other types you can contact us.

3. Copyright notice: FSD reserved all rights, no copy.


● Certifications:

1. Fire protection grade:‘non-combustible’,M1 non-combustible(European standard)

2. Safe and environmental protection:1) SGS ROHS

2) TUV LFGB

3. Anti-mildew: GB/T 24346

4. Insulation: GB/T 1408

5. Waterproof: GB/T 4745

6. Anti-UV: GB/T 18830

7. UL certification (extremely important certification, the first one in China)


● Common specifications:

Models


Aluminum foil fiberglass tape

(Normal temperature resistance)

Aluminum foil tape

(High temperature resistance above 200 ℃)

FB-HF150

FB-HF200

FB-HF200T

(high strength)

FB-HF190TH

(Hand tearing)Delicate type

FB-HF200TH

(Hand tearing)Rough type

Thickness(mm)

0.05±0.01

0.2±0.01

0.2±0.01

0.19±0.01

0.2±0.01

Initial sticky

17# steel ball: ≥25N/100MM (we can make as customers’ request)

Peel force(N/25MM)

≥10(we can make as customers’ request)

Width(mm)

10mm~1300mm(we can make as customers’ request)

Other

Special specification can be negotiated and customized note: high temperature resistant aluminum tape conventional products do not take off materials

If the specified release material (PET PVC, etc.) can be customized through negotiation


● Some product pictures:
