Single Weft Fiberglass Fabric

Fiberglass single axial fabric is made of fiberglass direct roving parallel aligned in 90°directions, then stitched by polyester yarn. Also can select to add chopped strand layer or non-woven fabric layer stitched together. It is compatible with Polyester, Vinyl and Epoxy resin and widely used in wind energy, boat building, FRP pipes and tanks, pultrusion section industry etc, suitable for pultrusion, hand lay up, filament winding, vacuum infusion processes.

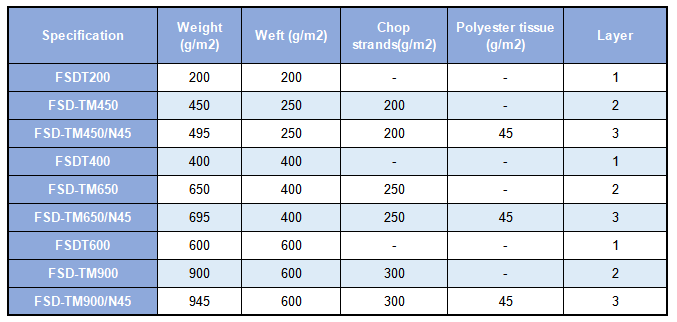

Single weft fiberglass fabric Specification

Roll width

Standard width in 1200mm, 1270mm, and other sizes depends on customer’s real needs, available in 200mm to 3200mm.


Fiberglass stitched mat is usually rolled in a paper tube with inner diameter 76mm. The roll is warped with plastic film, then put into carton. Lay the rolls horizontally, and can be loaded on pallets and bulk in container.


The product should be stored in a cool, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15℃ to 35℃ and 35% to 65% respectively. Please keep the product in its original packaging before being used, avoiding moisture absorption.
