What Are The Applications of Silicone Coated Fiberglass Fabric?

Author: Site Editor     Publish Time: 2023-11-08      Origin: Site

Silicone coated fiberglass fabric is a composite material that consists of a base layer of fiberglass fabric or cloth that is coated with a layer of silicone rubber on one or both sides. This combination of materials creates a versatile and durable fabric with a wide range of applications.

Characteristics and Applications of Silicone Coated Fiberglass Cloth

Silicone coated fiberglass cloth is known for its excellent heat resistance, durability, and flexibility. Below are some of its key characteristics along with their corresponding applications:

High Temperature Resistance

Silicone coated fiberglass cloth can withstand high temperatures, typically up to 260 to 315 degrees Celsius (500 to 600 degrees Fahrenheit) depending on the specific grade and composition.

Application: This characteristic makes it suitable for applications where exposure to extreme heat or open flames is a concern, such as in the manufacturing of welding blankets, fire curtains, and insulation covers.

Flame Retardant

It has inherent flame-resistant properties due to the silicone coating, which helps prevent the spread of fire. Silicone is a self-extinguishing material, meaning it will extinguish the flame when the heat source is removed. This, combined with the non-combustible nature of fiberglass, makes silicone coated fiberglass cloth inherently flame-resistant.

smoke curtains

Application: This feature is crucial for applications where fire safety is a primary concern, making it an ideal choice for protective gear, fire blankets, smoke curtains and industrial curtains.

Chemical Resistance

Silicone coated fiberglass cloth is resistant to a wide range of chemicals, acids, and solvents. Silicone is known for its inertness and resistance to many chemicals, acids, and solvents. Fiberglass provides a sturdy base material that further protects against chemical exposure. This combination of materials creates a barrier that resists chemical degradation.

Application: This makes it suitable for use in environments where exposure to corrosive substances is likely, such as chemical processing plants, laboratories, and automotive applications.

Electrical Insulation

The silicone coating provides excellent electrical insulation properties. The excellent electrical insulation properties arise from the non-conductive nature of silicone and glass fiber generally does not conduct electricity either.

Application: This makes it useful for applications where electrical insulation is required, including in the production of electrical insulation sleeves, tapes, and barriers.

Abrasion Resistance

It is highly resistant to wear and abrasion, ensuring long-lasting performance. Fiberglass has high tensile strength and abrasion resistance. A silicone coating adds an extra layer of protection, enhancing its wear resistance.

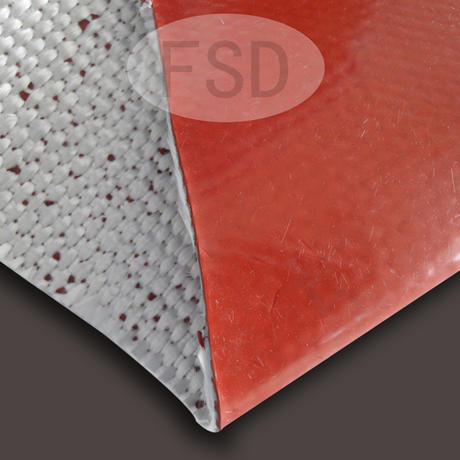

expansion joints

Application: This characteristic is crucial in applications where the material is subject to constant friction or contact with abrasive surfaces, such as conveyor belts, expansion joints, and gaskets.

Flexibility and Tensile Strength

Silicone remains flexible even at high temperatures, and fiberglass provides the structural strength. This combination allows the material to maintain its shape and withstand stretching or pulling forces.

Application: This allows for easy handling, shaping, and installation in various applications, including as flexible duct connectors, expansion joints, and removable insulation covers.

Water and Moisture Resistance

It has a degree of water and moisture resistance due to the silicone coating, which acts as a barrier.

Application: While not completely waterproof, this characteristic makes it suitable for applications where exposure to occasional moisture or humidity is expected, such as outdoor covers, marine applications, and certain industrial settings.

UV and Weather Resistance

Silicone coated fiberglass cloth exhibits good resistance to ultraviolet (UV) radiation and weathering effects.

Application: This feature is valuable for outdoor applications, such as in protective covers, awnings, and insulation blankets, where prolonged exposure to sunlight and environmental conditions is anticipated.

When you choose silicone coated fiberglass fabric, you may see the option of Silicone And AL Coated Fiberglass Fabric, which is a special fabric that is modified on the basis of silicone coated fiberglass fabric. Let's take a look at this fabric and learn the applications of it.

What is Silicone and AL Coated Fiberglass Fabric?

Silicone and AL (aluminum) coated fiberglass fabric is a specialized type of fabric that combines the properties of both silicone-coated fiberglass fabric and aluminum-coated fabric. This composite material is created by applying a layer of silicone and a layer of aluminum coating to a base layer of fiberglass fabric.

Silicone and AL (aluminum) coated fiberglass fabric

The aluminum coating adds a reflective surface to the original properties of silicone fiberglass cloth. Silicone and AL coated fiberglass fabric are commonly used in applications where both high-temperature resistance and reflectivity are required. Some typical applications include Heat Shields, Thermal Insulation, Fire Barriers, Welding Protection, Oven and Kiln Insulation, etc.

What is Silicone Coated Fiberglass Sleeve?

Silicone Coated Fiberglass Sleeve, sometimes referred to as a Silicone Coated Fiberglass Tubing or simply a Silicone Sleeve, is a specialized protective covering made from a combination of fiberglass and silicone materials.

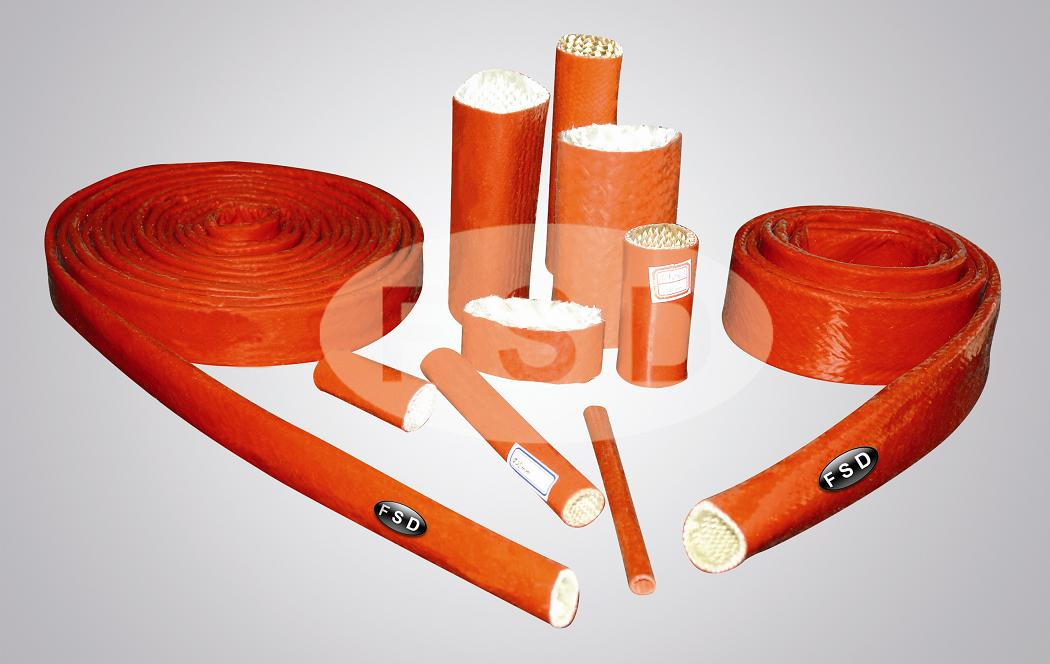

Silicone Coated Fiberglass Sleeve

Silicone coated fiberglass sleeves are commonly used in a range of industrial scenarios where protection against high temperatures, abrasion, and chemical exposure is required. Typical applications include insulating and protecting electrical wires, cables, and components in the electrical and electronics industry, serving as thermal insulation and fire protection in automotive and aerospace settings, and safeguarding hoses and machinery components from harsh environments in industrial manufacturing.

Silicone Fiberglass Fabric with One Side Coated VS with Two Sides Coated

One side coated

Silicone fiberglass fabric with one side coated is utilized in various applications where selective protection is required.

For instance, when designing protective covers for machinery, this kind of fabric offers resistance to heat, flames, or abrasion on the coated side, while the uncoated side can safely interact with the equipment without added protection. In wire and cable insulation, the coated side provides heat and flame resistance, ensuring safety, while the interior side doesn't need the same level of protection.

Two side coated

Silicone fiberglass fabric with two sides coated finds relevance in various applications, including fire blankets, flame-resistant curtains, automotive heat shields, protective covers, expansion joints, and hose or cable protection. In these situations, uniform protection on both sides of the material is required to ensure that it can effectively withstand high temperatures, flames, abrasion, and potential exposure to chemicals or contaminants.

For instance, fire blankets must provide equal protection on both sides to smother fires and shield against heat and flames, while expansion joints in construction need to accommodate structural movement and offer consistent insulation and weather resistance. This kind of fabric is chosen to guarantee reliable and balanced protection in such demanding environments.

What are the differences in application between silicone coated fiberglass fabric and ordinary fiberglass fabric?

The differences in application between silicone-coated fiberglass fabric and ordinary fiberglass fabric stem from their distinct properties. Here are the key considerations for each:

Water and Chemical Environment:

Silicone-Coated Fiberglass Fabric:

Highly Water-Resistant: Offers superior water resistance due to the silicone coating, making it suitable for applications where exposure to moisture is a concern. Also, silicone-coated fiberglass fabric exhibits robust resistance to a variety of chemicals, enhancing its durability in corrosive environments.

Ordinary Fiberglass Fabric:

While resistant to many chemicals, it will be more susceptible to moisture absorption and potential chemical degradation without the protective silicone coating.

Strength and Toughness:

Silicone-Coated Fiberglass Fabric:

The silicone coating enhances the fabric's strength, providing increased resistance to tearing and abrasion.

In addition, silicone-coated fiberglass fabric exhibits improved toughness, making it suitable for applications where mechanical stresses or wear resistance are crucial.

Ordinary Fiberglass Fabric:

While fiberglass fabric is generally strong, it may not have the enhanced strength provided by the silicone coating.

While suitable for various applications, ordinary fiberglass fabric may exhibit lower toughness compared to its silicone-coated counterpart. Not as flexible as silicone-coated fabric in some applications that require bending.

Wear Resistance:

Silicone-Coated Fiberglass Fabric:

The silicone coating contributes to improved wear resistance, making it suitable for applications where the fabric will be subjected to friction, abrasion, or repeated flexing.

Ordinary Fiberglass Fabric:

Fiberglass fabric without a silicone coating may have moderate wear resistance but could be less robust in high-wear situations compared to silicone-coated fabric.

What should you pay attention to when applying silicone coated fiberglass fabric?

When applying silicone-coated fiberglass fabric, there are several important considerations to ensure proper application and performance. Here are some key factors to pay attention to:

Handling and Storage:

Handling: When handling the silicone-coated fiberglass fabric, use clean and dry hands or wear gloves to prevent any transfer of contaminants. Avoid dragging the material across rough surfaces that could potentially damage the silicone coating. If the fabric is in a roll, handle it with care to prevent creasing or folding that might affect the coating's integrity.

Storage: Store the silicone-coated fabric in a controlled environment with consistent temperature and humidity levels. Avoid exposing the material to direct sunlight or extreme temperature fluctuations. If storing in rolls, ensure they are stored upright to prevent distortion of the fabric.

Surface Inspection:

Before any additional processes or applications, visually inspect the entire surface of the silicone-coated fabric. Check for any signs of damage, such as tears, punctures, or abrasions. Address any issues found promptly by repairing or reinforcing the damaged areas to maintain the overall quality and functionality of the coating.

Before applying the silicone-coated fiberglass fabric, thoroughly clean the surface to remove any dirt, dust, grease, or other contaminants. Use a suitable cleaning agent recommended by the adhesive or silicone coating manufacturer. Ensure the surface is completely dry before proceeding with the application to promote optimal adhesion.

Adhesive Selection:

Choosing the Right Adhesive: Select an adhesive that is compatible with both the substrate and the silicone-coated fiberglass fabric. Consider factors such as the intended use, environmental conditions, and any specific requirements for bonding strength. Consult the adhesive manufacturer's guidelines and conduct compatibility tests if necessary. Apply the adhesive evenly, following the recommended application method, to ensure a secure and durable bond between the substrate and the silicone-coated fabric.

Temperature and Environmental Conditions:

Before handling or applying the silicone-coated fabric, verify that the ambient temperature and humidity levels meet the manufacturer's specifications. Inappropriate environmental conditions can affect the material's flexibility and adhesion. Ensure that the workspace is clean and free from dust, as airborne particles can interfere with the silicone coating.

Application Method:

Choose the appropriate method for any additional processing, such as cutting or shaping the fabric. Use sharp, clean tools to prevent fraying or damaging the edges of the material. If precision is crucial, consider using templates or guides to ensure accurate cuts without compromising the existing silicone coating. When joining pieces, follow recommended techniques to maintain the continuity of the coating.

Safety Precautions:

Adhere to safety guidelines at all times. If additional processes involve tools or equipment, ensure operators are trained on their safe use. Use personal protective equipment (PPE) such as gloves and safety glasses to protect against potential hazards. Communicate and display safety instructions in the working area to promote a secure environment for all personnel involved in handling or processing the silicone-coated fabric.
