What Is Ceramic Fiber Cloth Used For?

Introduction

Following the discontinuation of asbestos cloth in the market due to its carcinogenic properties, ceramic fiber cloth emerged as a viable alternative. Also referred to as aluminum silicate fiber cloth, it is crafted from ceramic fiber yarn, which is expertly intertwined with heat-resistant alloy wire or alkali-free glass yarn.

Ceramic fiber cloth products boast remarkable strength, excellent flexibility, and impressive versatility in terms of manufacturing. They not only exhibit exceptional high-temperature insulation capabilities but also possess the pliability of conventional textiles. Noteworthy attributes of ceramic fiber cloth include its resistance to high temperatures, low thermal c

onductivity, ability to withstand thermal shocks, minimal heat capacity, and superb high-temperature insulation properties.

Applications and their corresponding characteristics

High-temperature insulation

Ceramic fiber fabric is primarily known for its outstanding ability to withstand high temperatures. It is used in applications where conventional materials would succumb to heat, such as lining for industrial furnaces, kilns, and foundries. Its characteristic of high-temperature resistance ensures safety and efficiency in these environments.

Aerospace thermal protection

In the aerospace industry, ceramic fiber fabric is used for thermal protection. Spacecraft, reentry vehicles, and rocket engines are equipped with ceramic fiber fabric to shield them from the intense heat generated during launch and atmospheric reentry.

Lightweight and durable

One of the key features of ceramic fiber fabric is its lightweight nature. This makes it an ideal choice for applications where weight needs to be minimized, such as in aerospace components. Despite its lightness, it is remarkably durable, ensuring a longer lifespan for products that utilize this material.

Heat insulation

In household appliances

Ceramic fiber fabric is also used in household appliances like ovens and stoves. It provides excellent heat insulation, reducing energy consumption and preventing external surfaces from becoming dangerously hot. This application enhances the safety and efficiency of these appliances.

In power plants

Power plants, both conventional and nuclear, rely on ceramic fiber fabric for insulation. Its exceptional insulation characteristics help maintain stable operating temperatures and prevent heat loss in critical components.

Marine applications

Ceramic fiber fabric is also prevalent in marine applications. It is used in shipbuilding, offering fire protection and insulation, ensuring the safety and functionality of vessels.

Strong corrosion resistance

In certain industrial processes, exposure to harsh chemicals is inevitable. Ceramic fiber fabric's resistance to chemicals makes it invaluable in applications where contact with corrosive substances can compromise the structural integrity of materials.

Flame retardant properties

Ceramic fiber fabric offers flame retardant properties, making it indispensable in fireproofing applications. It is used to create fire-resistant barriers and protective gear, ensuring the safety of both people and structures in hazardous environments.

Noise reduction and vibration dampening

Beyond its heat resistance, ceramic fiber fabric has excellent noise-absorbing properties. This feature is harnessed in various applications, from automotive soundproofing to industrial machinery enclosures, creating quieter and more comfortable environments.

In applications where vibrations need to be controlled, ceramic fiber fabric acts as an effective dampening material. Its ability to absorb vibrations is utilized in the construction of vibration-resistant components in machinery and vehicles.

Compared with other fabrics, ceramic fiber fabric has significant advantages in thermal insulation

Higher temperature tolerance: Ceramic fiber cloth can withstand extremely high temperatures, with continuous use temperatures up to 1000°C and short-term use temperatures typically ranging from 1260°C (2300°F) to 1650°C (3000°C). F). The maximum temperature that glass fiber cloth can withstand is about 700°C (1292°F), much lower than ceramic fiber cloth.

Lower thermal conductivity: The thermal conductivity of ceramic fiber cloth is generally low, which can reach 0.03-0.08 W/(m·K) or even lower. The thermal conductivity of glass fiber cloth typically ranges from 0.04 to 0.08 W/m·K.

Compared with currently commonly used thermal insulation materials, the thermal insulation effect of this material can be increased by 2-10 times. Can reduce the thickness of insulation layer by 30%-50%. This means that ceramic fiber has good thermal insulation properties and is suitable for thermal insulation materials in high temperature environments.

Environmentally friendly and non-toxic: does not release any toxic substances in fire scenes and high temperatures, does not contain asbestos (full range), polybrominated biphenyls (flame retardants).

Ceramic fiber rope

Different types of ceramic fiber products and their corresponding applications

Ceramic fiber rope is a flexible and easy-to-handle product. It is used for sealing, gasketing, and insulating applications in high-temperature environments. Its flexibility and resistance to thermal shock make it ideal for critical sealing requirements. For example, it can be used to seal expansion joints in high-temperature pipelines to ensure their shear and pressure performance; It can also be used to seal the sliding seal ring to ensure its sealing performance and friction performance; In addition, it can also be used for the coating of thermal insulation to ensure that the temperature of the equipment is not too high.

Ceramic fiber sleeve

Ceramic fiber sleeves are designed to protect cables, hoses, and pipes from extreme heat. They provide excellent thermal insulation and are widely used in industrial settings to safeguard sensitive components.

Ceramic fiber tape

Ceramic fiber tape is made of high-grade ceramic fiber (aluminum silicate fiber) as raw material, which is spun and woven. It's a versatile product used for wrapping and insulating pipes, ducts, and various industrial equipment. It is known for its high tensile strength and resistance to thermal cycling.

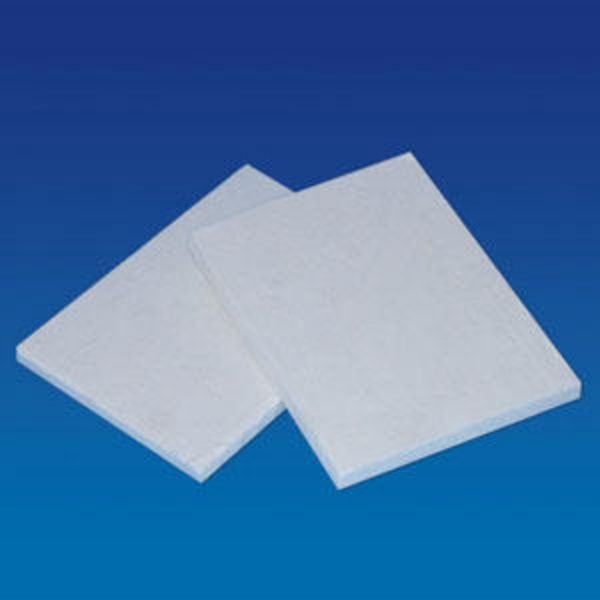

Ceramic fiber paper

Ceramic fiber paper is a thin sheet material made of ceramic fibers through a wet papermaking process. It's a lightweight and flexible material used for gasketing and insulation in high-temperature applications. It is often employed in automotive and industrial settings.

Ceramic fiber board

Ceramic fiber boards are made of ceramic fibers through pressing and sintering processes. They are rigid and provide excellent thermal insulation. They are used in applications like furnace lining, kiln construction, and as a backup insulation layer in industrial processes.

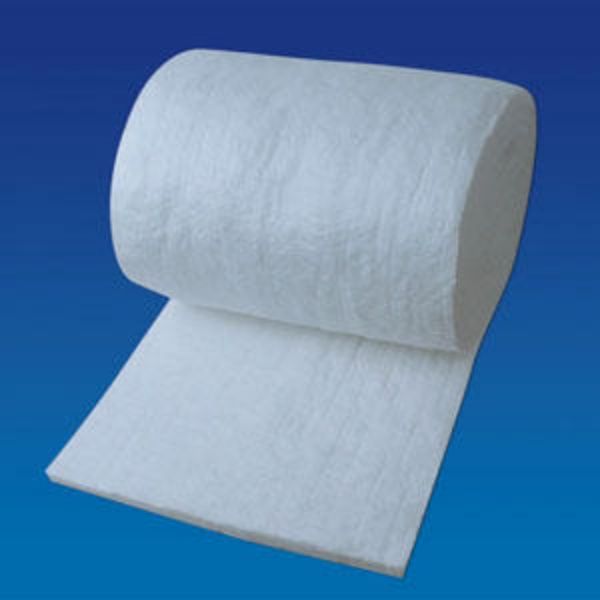

Ceramic fiber blanket

Ceramic fiber blanket offer superior thermal insulation and are extensively used in furnace and kiln lining, as well as for insulation in the petrochemical industry.

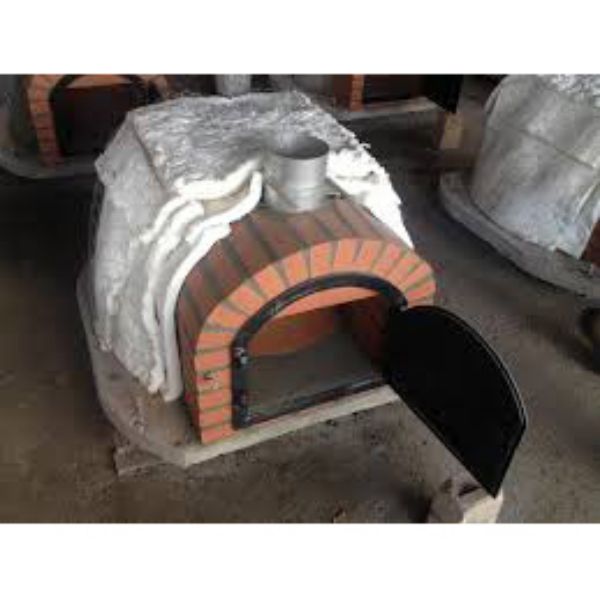

Ceramic fiber cloth

Ceramic fiber cloth combines flexibility with exceptional heat resistance. It is used in welding protection, heat shielding, and as a general-purpose high-temperature fabric.

FAQ

Is ceramic fiber fabric safe to use in household appliances like ovens and stoves?

Yes, ceramic fiber fabric is often used in household appliances like ovens and stoves for its excellent heat resistance and insulation properties. It can withstand high temperatures, making it a safe choice for insulating and protecting these appliances. However, always follow safety guidelines and consult the manufacturer's recommendations for your specific appliance.

Can I use ceramic fiber fabric for DIY projects requiring high-temperature insulation?

Yes, ceramic fiber fabric is suitable for DIY projects that require high-temperature insulation. It can be used to line or insulate various applications, such as forges, kilns, and fireplaces. Its ability to withstand extreme heat and its insulating properties make it a valuable material for DIY projects involving high temperatures. Be sure to handle it with care, as the fibers can be irritating to the skin and lungs, so wear appropriate protective gear.

How does ceramic fiber fabric contribute to fire safety?

Ceramic fiber fabric contributes to fire safety in several ways. Its inherent fire resistance and high-temperature tolerance make it an effective insulating material in environments where fire safety is critical. In the event of a fire, ceramic fiber fabric can help contain and resist the spread of flames and heat, which is essential for protecting structures and equipment. Its ability to maintain its structural integrity at high temperatures is a valuable feature for fire-resistant applications in industries like construction, manufacturing, and aerospace.
